Twelve new Jam LEDs are provided on the left and right drawer covers. An LED lights if a jam occurs at its location. This makes it much easier to locate and remove sheets that jam in the paper path by manually rotating the jam removal knobs.
The 12 jam LEDs are behind four covers on the front of the machine.
At the present time (Oct. 2016) LEDs A1, B1, B2 and D1 in the table below are not functional. Their function will be enabled in the near future.
No. | Cover | LED |
|---|---|---|
1 | Exit unit | C2, D1, D6 |
2 | Purge tray | E |
3 | Registration unit | B1, B2, B4, B5, C1 |
4 | Vertical transport unit | A1, A2, A3 |

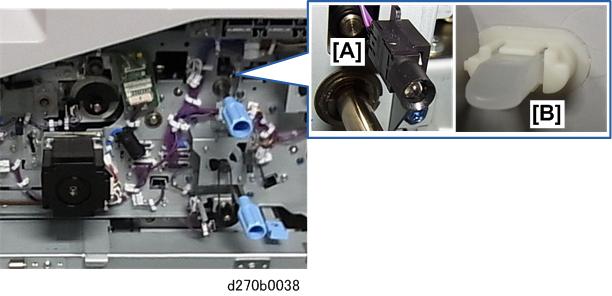

Each LED [A] is mounted on a peg opposite to a projection lens [B] mounted on the cover. When a jam occurs at its location, the LED lights and the light is magnified by the lens.
The LEDs are not connected to the covers, so their connectors and harnesses do not interfere with cover removal.
