1. Lift the rear left cover [A] of the Vacuum Feed LCIT slightly and remove it (x6).
  1. Attach the rear left cover by hanging it on the hook.
  2. Lift the rear right cover [A] slightly and remove it (x10).
  3. Attach the rear right cover by hanging it on the hook.

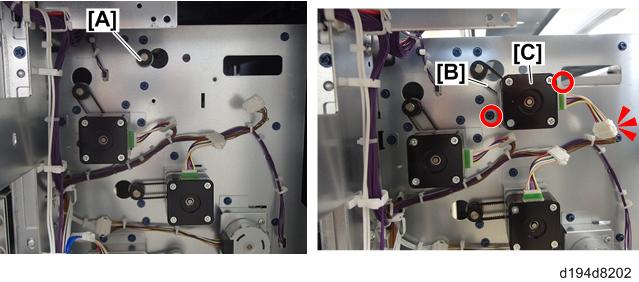

  4. Attach the stepping motor assembly [C] while attaching the timing belt: M140 [B] to the pulley [A] and the stepping motor (x2: M4x8,x1).

    • The stepping motor assembly, timing belt: M140 and fixing screws are provided with the Multi Bypass Attachment Kit.

  5. Re-attach the covers.
