1. Open the front doors.
  2. Lower lever [A], and then remove cover [B] (x5).
  3. Pull out the drawer [A].
  4. Disconnect the lock plate [B] on the left (x1).
  5. Push the lock plate [C] to the right to release it.
  6. Remove the lock plate [D].
  7. Remove the right front cover (x5).
  8. Pull out the upper sleeve. The sleeve may be tight and difficult to pull out the first time it is removed. Grip it firmly on both sides as shown, and then pull out firmly until the sleeve slides out.

  9. At the rear [A], disconnect the rear edge of the rail support plate (x2).

  10. At the front [A], disconnect the front edge of the rail support plate x2).
  11. The rail assembly [A] is heavy. Use both hands to remove it from the machine.
  12. Lay the rail assembly [B] on a flat surface as shown.

  13. With the rail assembly removed, you can access components from the top of the registration unit.



Re-installation

  1. Set the rail assembly on the registration unit.
  2. At the front edge [A], align the two bosses with the holes.

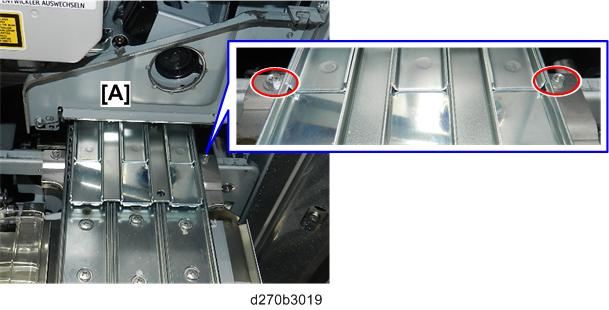

  3. At the front edge of the registration unit [A], fasten the front end of the rail assembly (x2).

    • Tighten down these screws completely. If they are not down, they can obstruct the rail assembly when it is re-inserted into the machine.

  4. Set the rear edge of the rail assembly at [A], and then push it into the machine until it stops [B].

    • If the sleeve does not slide in easily, pull it out and try again.
    • Do not strike the edge of the assembly to drive it into the machine.

  5. On the left, align the plate tab [A] with the hole.
  6. On the right, align the plate keyhole [B] with the tab.
  7. If the slot will not fit over the tab [A], use the tip of a screwdriver to push it in.
  8. Slide the plate [B] to the left so that it locks in place [C].
  9. Fasten the plate on the left (x1).
  10. Re-attach lever C1, and then make sure that the drawer opens and closes smoothly (x2).
  11. If the movement is not smooth, detach the rail and then re-attach it.
  12. Pull out the drawer.
  13. Fasten the plate at the rear [A] (x 2).
  14. Before re-attaching the right front cover, once again make sure that the drawer slides in and out of the machine smoothly. If the movement is not smooth, detach the rail and then re-attach it.
  15. Re-attach the right front cover of the drawer.
