1. Pull out the front drawer
  2. Remove the left front cover of the drawer (x3).
  3. Duplex transport motor 1 is at the bottom.
  4. Disconnect the motor (x1).

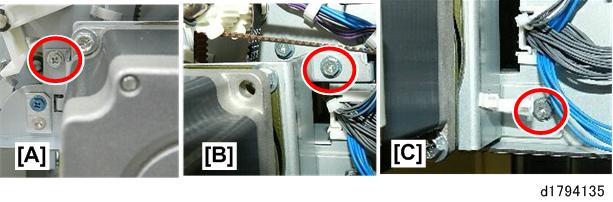

  5. Disconnect the motor bracket:
    [A] Top left (x1)
    [B] Upper right (x1)
    [C] Lower right (x1)
  6. Remove the motor bracket (with motor attached).

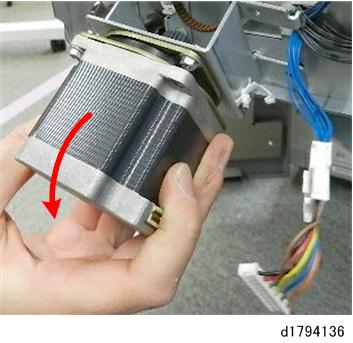

  7. Separate the motor from the bracket (x2).
