1. Remove the ITB unit (ITB Unit Removal)
  2. Remove the transfer belt (Belt Removal)
  3. Remove the PTR separation motor (PTR Separation Motor)
  4. The heater is under the paper transfer bias roller.
  5. Remove the paper transfer bias roller. (Paper Transfer Bias Roller)
  6. The heater is under the plate.
  7. Disconnect the harness where you removed the motor.
  8. Turn the unit over.
  9. Remove the screws to free the plate (x2).

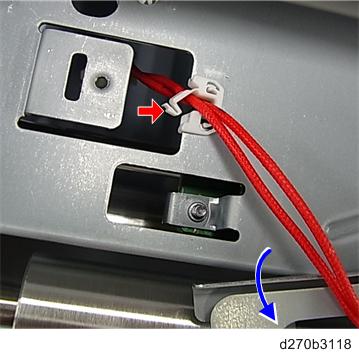

  10. Open the harness clamp where you disconnected the front end of the plate (x1).

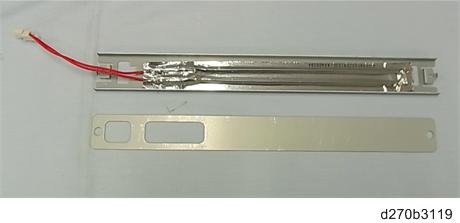

  11. Remove the plate with heater attached, and the shield plate.
