1. The lubricant bar is on the right.
  2. Disconnect:
    [A] Front (x1)
    [B] Rear (x1)
  3. Remove the lubricant bar bracket (with bar attached).

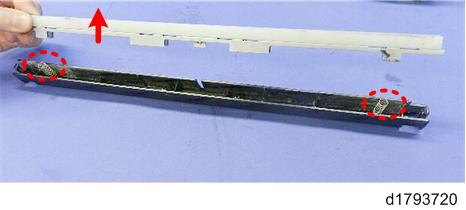

  4. Open the releases on each end of the bracket to release the bar from the bracket (x1).

  5. Separate the bar and bracket.

    • Do not lose the springs inside the bracket.
