• The lubricant blade, lubricant bar, lubricant roller (brush roller), and lubricant roller coupling are replaced together.
  • The lubricant bar must be removed before the lubricant roller, and then re-installed after the lubrication roller.

  1. The lubricant bar is behind the bracket of the lubricant near-end sensors (these sensors are not removed).
  2. Disconnect the bracket at [A] and [B] (x2).
  3. Remove the bracket (with harnesses attached).
  4. Remove the bar and place it flat on the table.

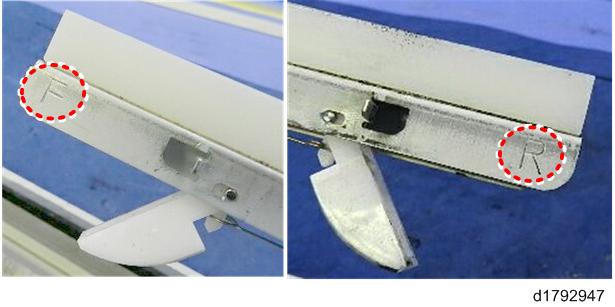

  5. Note that the ends of the bar bracket are marked "F" (Front) and "R" (Rear).

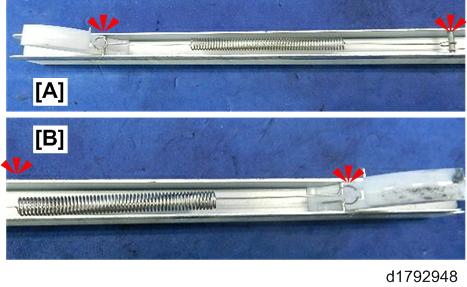

  6. Disconnect the springs [A] and [B] (x2).

    • Do not discard these springs. They are not provided as service parts and must be re-attached to the new lubricant bar.
