- Set the feed cover as shown.
- Set the shaft of the upper guide [A] on the edge of the feed cover.
- Make sure that the shielded harnesses [B] are not pinched between the cover and guide, and then lower the guide [C] onto the feed cover.
- Snap the edge of the guide onto the posts, and then fasten the guide with the screws.
- At the left rear corner of the ADF, push the harnesses into the cutout.
- At the front, pull the hinge arm [A] out slightly.
- Set the lower guide [B].
Make sure that three holes [C] across the top are aligned with the frame below.
- If the holes are not perfectly aligned, or if the guide is floating above the holes, make sure the harnesses are completely tucked into the cutout at the rear left corner of the ADF. (See the previous step.)
- Use the black step screws to fasten the guide at the front [A] and center [B].
- Use the longer screw to fasten the back end of the guide.
- Insert the feed cover [A] at the rear.
- At the front, set pivot screw [B], and then fasten hinge arm [C].
- Open and close the feed cover to make sure that it is operating smoothly.
- At the left rear corner of the ADF, make sure that the shielded harnesses are not pinched between feed cover and upper guide.
- Connect the shielded harnesses [A] and then close the clamps [B].

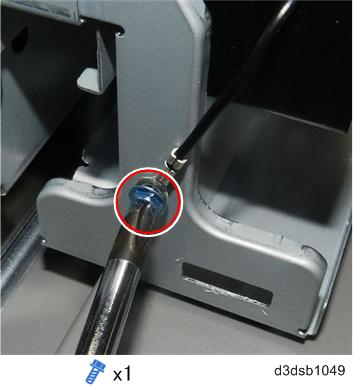

- Fasten the ground wire.
- At the front, lower the ADF.
- Set the tabs to attach the front cover.
- Push the attached front cover to the right to lock the tabs.
- Fasten the top edge front cover.
- At the rear, set the bottom tabs [A] of the rear cover.
- Rotate the rear cover up [B].
- Fasten the top edge of the rear cover at [A] and [B].
- Attach the cover screw cover plate [A], and then lower the feed cover [B].
