1. ADF entrance motor bracket (ADF Entrance Motor)

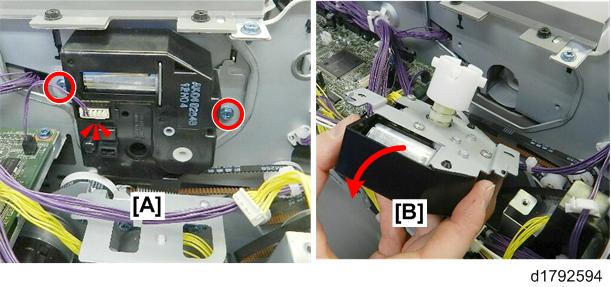

  2. Disconnect the motor [A] (x2, x1).
  3. Pull the motor bracket [B] and coupling away from the back of the ADF.

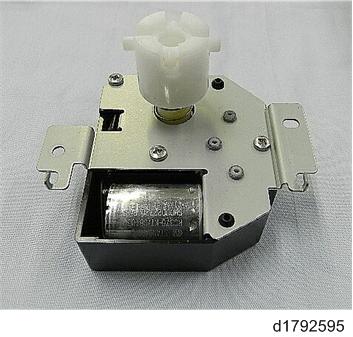

  4. Lay the bracket on a flat clean surface.

Re-installation

If it is difficult to re-install the ADF bottom plate lift motor:

  • Remove the screw [A], and then raise the plate [B] to the right (x1).
  • At the rear, you will be able to see and access the ADF lift motor coupling [C].
