1. Open the controller box (Opening the Controller Box)
  2. Lower the IOB (x8, x3, x4).(Lower the IOB)
  3. Free the harnesses (x4).
  4. Disconnect the top of the plate (x3).
  5. Disconnect the bottom of the plate at [A] and [B] (x2).
  6. Disconnect the side of the plate (x2).
  7. Pull out the front drawer.
  8. Remove plate [A].
  9. Push the front drawer completely into the machine so that you can access the motors again.
  10. The registration entrance motor is on the left.
  11. Disconnect the motor bracket at the top (x1,x2).
  12. Disconnect the motor bracket at the bottom (x2,x1).
  13. Disconnect the cage and then remove the motor bracket with motor attached (x2).

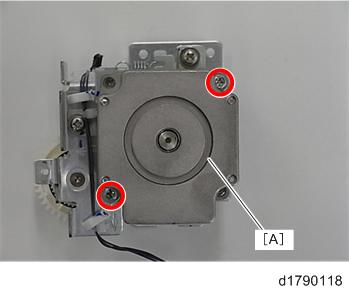

  14. Separate motor [A] and bracket (x2).

    Re-installation
  1. When re-installing the motor [A], loosen the three screws to release the tension on the spring [B].
  2. Set the belt [C] and the motor gear [D], and then fasten the motor and bracket together (x2).
  3. Tighten the screws [B] to restore tension on the belt.
