1. Open the VTU (Opening the VTU)

    • If the VTU is not open, you will not be able to remove the PFU.

  2. Disconnect the PFU [A] (x1, x).
  3. Remove the bracket [B] (x3).
  4. Disconnect the PFU at [A] and [B] (x1, x1).
  5. Disconnect the PFU [A] at the front (x2).
  6. Swing the PFU to the right [B].

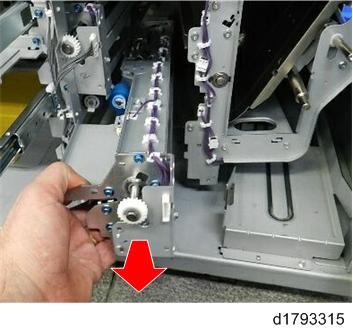

  7. Pull the PFU to the front. This disengages the back of the PFU from the alignment pins and couplings at the rear.
  8. Pull the PFU out of the machine.
