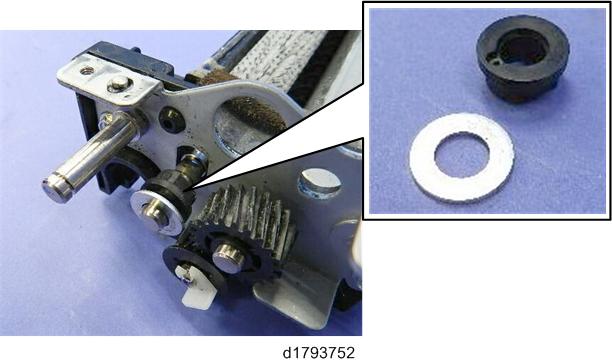

1. This bushing and washer require lubrication with Barrierta S552R.

    • In the steps below, the left photo illustrates the minimum amount applied, and the right photo the maximum amount applied.

  2. First, lubricate the sleeve of the bushing with 0.02 to 0.04 g of grease.

    • The grease in the foreground illustrates the total amount to be applied to the entire bushing, not just the sleeve.

  3. Next, apply grease to the face of the bushing flange.
  4. Finally, apply grease to the washer.
  5. After setting the washer and bushing on the shaft, apply a small amount of grease to the tip of the shaft.
