The side fence and end fence of the paper feed trays can be fasten for operators using standard paper sizes. Use the service parts listed below to fasten the fences.
| Application | Part Name | Part No. | Note | |
|---|---|---|---|---|
| [A] | Fastens the side fence | Hex tapping screws (+) M3x10 | 04583010N | |
| [B] | Fastens the end fence | Nylon Rivet NRP345 | H0202318 |  |

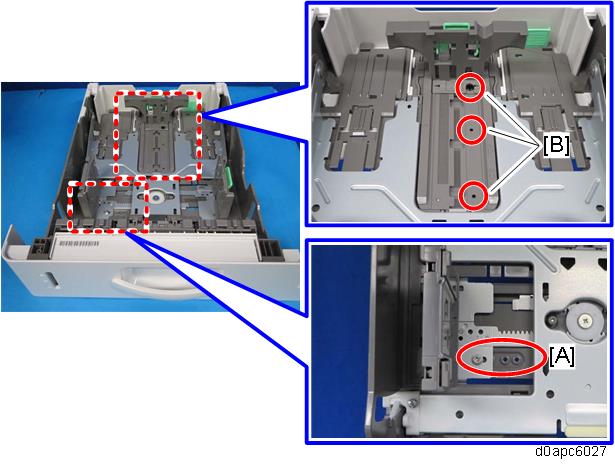

Attachment Locations
