Apply Barrierta grease at the locations shown below
| Location | Part name | Note | |
|---|---|---|---|

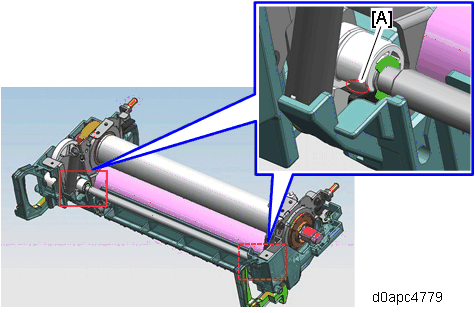

| [A] | Between fusing unit separation cam and pressure lever | CAM:ON-OFF, COVER:LEVER:PRESSURE | 2 places. |

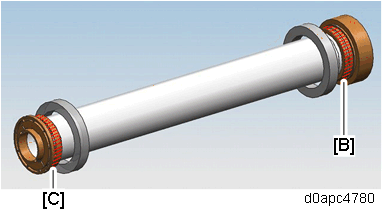

| [B] | Hot roller bushing insertion point | GEAR:HOT ROLLER | 2 places (both sides of hot roller bushing). |
| [C] | THERMAL INSULATING BUSHING:HOT ROLLER | ||

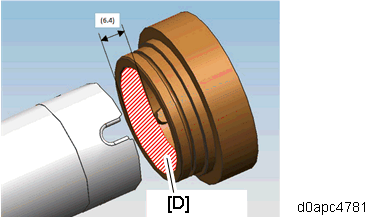

| [D] | Inside hot roller gear | GEAR:HOT ROLLER |
| Coating Amt. | Maximum | Minimum |
|---|---|---|
| [B] |  |  |
| [C] |  |  |
| [D] |  |  |
