1. Remove the fusing unit. (Fusing Unit)

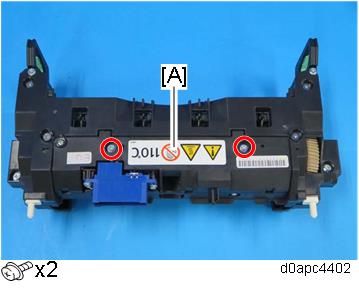

  2. Remove the drawer connector cover [A].

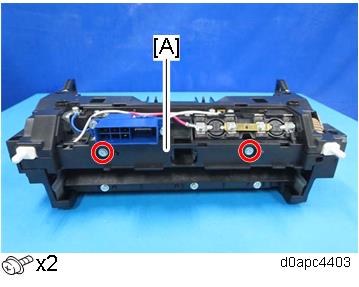

  3. Remove the fusing front cover [A].

  4. Remove the fusing upper cover [A].

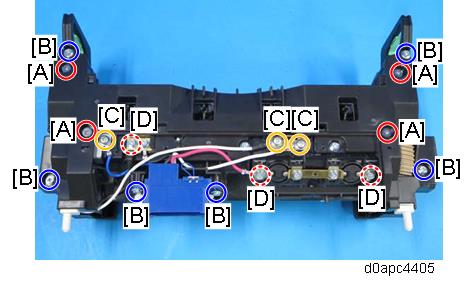

    Since the four kinds of screws are used, be careful when assembling.

    Call outScrewCall outScrew
    [A]Shoulder screw
    		[B]Tapping screw (M3)
    [C]Bind screw with washer (M4)
    		[D]Hexagonal screw with washer (M3)

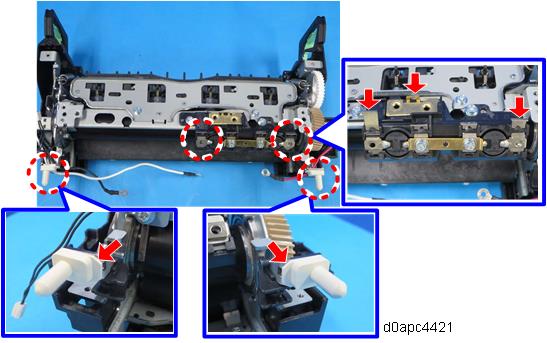

    The plate nuts, pins, and plate can be easily removed. After removing the fusing upper cover, do not lose until assembling the fusing unit.
