To prevent injury from electrical shock or damage to the machine, before installation always, turn the main machine power off, and then unplug the machine power supply cord from the power source.

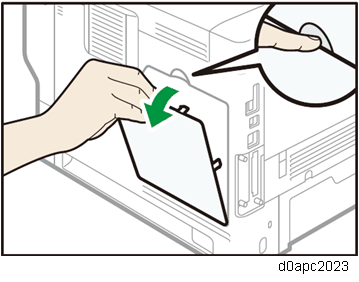

  1. Remove the HDD cover.

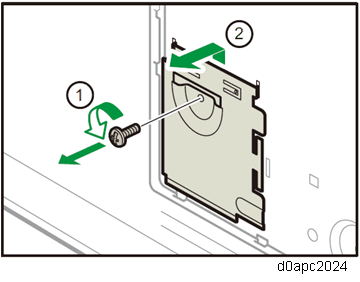

  2. Loosen the screw by using a coin, and then remove the inner cover.

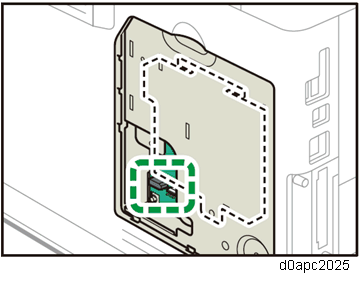

  3. Install the hard disk in the indicated position.

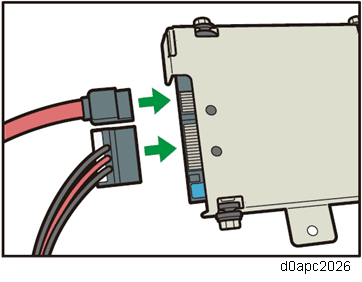

  4. Connect the flat cable and power cord to the hard disk.

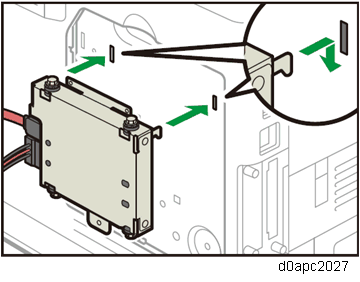

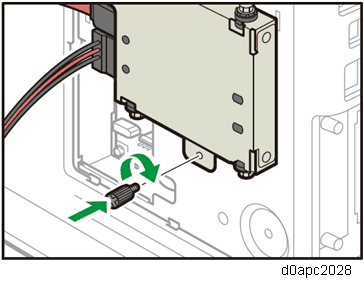

  5. Align the upper protrusions on the hard disk into the notches on the machine, and then fasten the hard disk to the machine with the screw.


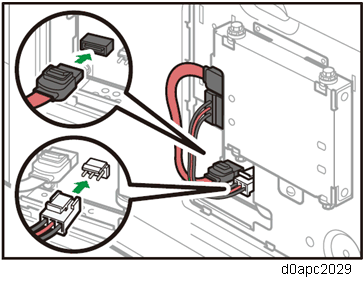

  6. Connect the flat cable and power cord to the board of the machine.

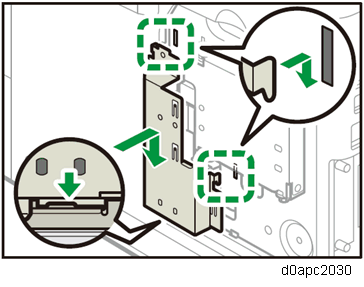

  7. Insert the two protrusions of the supplied inner cover, and then the lower protrusion, into the notches on the machine.

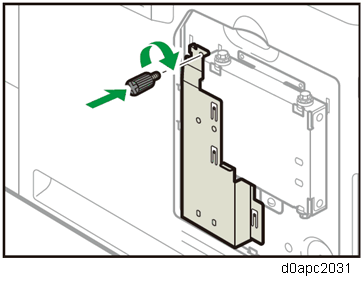

  8. Tighten the screw.

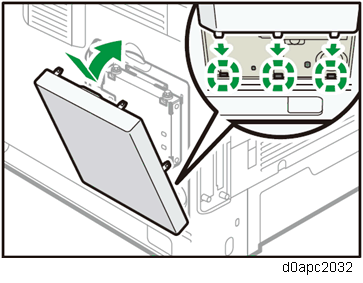

  9. Attach the supplied HDD cover.

  10. Plug in the power cord, and then turn on the machine.

    When you switch the power on, a message is displayed indicating that the external hard disk drive will be formatted.

  11. Print the configuration page to confirm the installation

    If it is correctly installed, "Hard Disk" will appear for "Device Connection" on the configuration page.
