1. Remove the right cover. (Right Cover (Printer), Right Cover (MF))
  2. Remove the front cover. (Front Cover (Printer), Front Cover (MF))

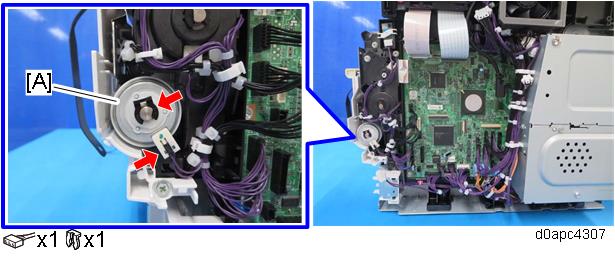

  3. remove the bypass lift clutch (CL3) [A].

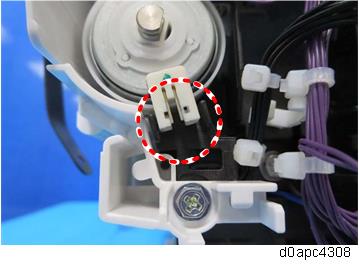

    When attaching the bypass lift clutch (CL3), make sure that the connector of the clutch is set over the holder as shown below.
