Drum Motor

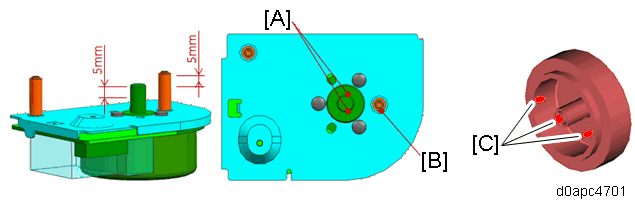

Apply grease to the drum motor as shown below.
| Location | Part name | Note | |
|---|---|---|---|
| [A] | Drum motor shaft | DC BRUSHLESS MOTOR:DRUM:26W | Apply 5 mm to shaft tip. |
| [B] | Drum motor peen | BRACKET:DRIVE:MOTOR:PEEN | Apply 5 mm to shaft tip. |
- May also be applied to opposing gear [C] (Gear: Drum: 1st) instead of [A] and [B].
| Coating Amt. | Maximum | Minimum |
|---|---|---|
| [A] |  |  |
| [B] |  |  |
Drum Motor Unit

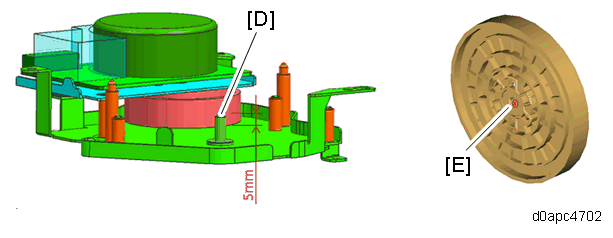

Apply grease in the drum motor unit as shown below.
| Location | Part name | Note | |
|---|---|---|---|
| [D] | Drum motor unit peen | BRACKET:DRIVE:DRUM:PEEN | Apply 5 mm to shaft tip. |

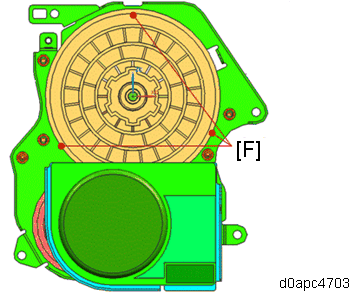

| [F] | Drum motor unit gear teeth | GEAR:DRIVE:DRUM | 3 places |
- May also be applied to opposing gear [E] (GEAR: DRIVE: DRUM shaft instead of [D].
| Coating Amt. | Maximum | Minimum |
|---|---|---|
| [D] |  |  |
| [F] |  |  |
