- Remove the paper cassette.

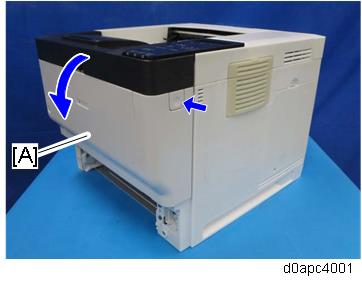

Open the front cover [A] by pressing the front cover button.

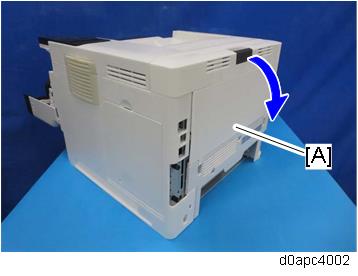

Open the rear cover [A].

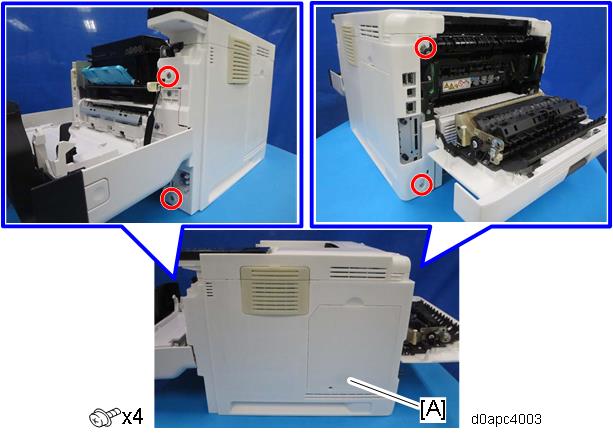

Remove the right cover [A].

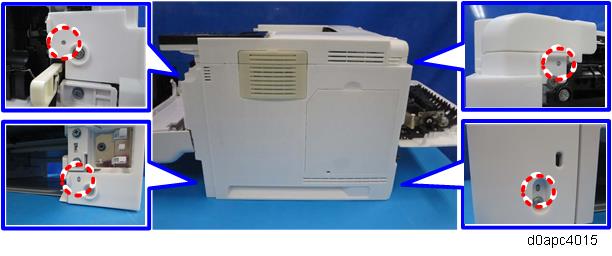

The right cover is held in position by bosses on the frame of the main machine, so the right cover must be disconnected from these bosses before removal.
