- Insert VM Card into the SD memory card reader/writer of your PC.
 - Check that the SD memory card reader/writer is detected on your PC, and then write down the drive letter. (If the SD memory card reader/writer is detected as (F:), the drive letter is "f")
 - Download the update modules from the Firmware Download Center.
 - Unzip the downloaded file, and then execute the .exe file.
 - The folder is generated.
 - Execute the .bat file in the folder.

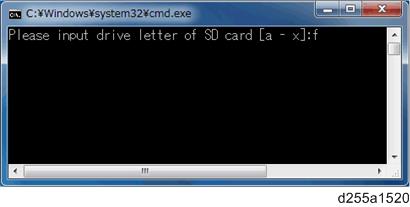

 - Input the drive letter following the message "Please input drive letter of SD card [a - x]: ". (If the SD memory card reader/writer is detected as (F:), input "f")

 - Press the [Enter] key to start updating Java VM.
It takes 3 minutes to update Java VM. - After completing the update, remove VM Card from the SD memory card reader/writer of your PC.
 - Insert VM Card into SD Slot 1 (upper) of the machine.
 - Attach the SD card slot cover.
