How to restore the old encryption key to the machine

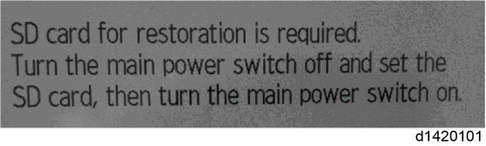

The following message appears after the controller board is replaced. In such a case, it is necessary to restore the encryption key to the new controller board.

To do this, follow the procedure below.

  1. Prepare an SD card that has been initialized in FAT16 format.
  2. Using a PC, create a folder in the SD card and name it "restore_key".
  3. Create a folder in the “restore_key” folder and name it the same as machine’s serial number, “xxxxxxxxxxx” (11 digits).

  4. Create a text file called "key_xxxxxxxxxxx.txt" and save it in the "xxxxxxxxxxx“ folder. Write the encryption key in the text file.
    /restore_key/xxxxxxxxxxx/key_xxxxxxxxxxx.txt

    • Ask an Administrator to enter the encryption key. The key has already been printed out by the user and may have been saved in the "key_xxxxxxxxxxx.txt" file. (The function of back-up the encryption key to the SD card directly is provided 11A products or later.)

  5. Turn the machine on.
  6. Confirm that a message is displayed on the LCD telling to insert the SD card that contains the encryption key.
  7. Turn the machine off.
  8. Insert the SD card that contains the encryption key into the lower media slot on the back of the machine.

  9. Turn the machine on.

    The machine will automatically restore the encryption key to the flash memory on the controller board.

  10. Turn the machine off when the machine has returned to normal status.
  11. Remove the SD card from the media slot.
How to do a forced startup with no encryption key

If the encryption key back-up has been lost, follow the procedure below to do a forced start-up.

  • The HDD will be formatted after the forced start-up.
  • Encrypted data will be deleted.
  • User settings will be cleared.

  1. Prepare an SD card.
  2. Create a directory named “restore_key” inside the root directory of the SD card. Then, save the “nvram_key.txt” file using the following name:
    /restore_key/nvram_key.txt

  3. Create a text file and write "nvclear".

    • Write this string at the head of the file.
    • Use all lower-case letters.
    • Do not use quotation marks or blank spaces.
    • It is judged that a forced start has been selected when the content of "nvclear" is executed and the machine shifts to the alternate system (forced start).

  4. Confirm that a message is displayed on the LCD telling to insert the SD card that contains the encryption key.
  5. Turn the machine off.
  6. Insert the SD card that contains the encryption key into the lower media slot on the back of the machine.
  7. Turn the machine on.
    The machine automatically clears the HDD encryption.
  8. Turn OFF the main power when the machine has returned to normal status.
  9. Remove the SD card from the media slot.
  10. Turn the machine on.
  11. Memory clear SP5-801-xx (Exclude SP-5-801-001: All Clear and SP-5-801-002: Engine), and clear SP5-846-046: the address book.
  12. Set necessary user settings in User Tools key.



SP descriptions
  • SP5-878-002 (Option Setup: HDD Encryption)
    Executes the setup for encryption.
  • SP5-990-005 (SP Print Mode: Diagnostic Report)
    Prints the configuration sheets of the system and user settings: SMC.
    Make sure to shut down and reboot the machine once before printing the SMC. Otherwise, the latest settings may not be collected when the SMC is printed.
  • SP5-801-001 (Memory Clear: All Clear)
    Resets all correction data for process control and all software counters, and returns all modes and adjustments to their default values.
  • SP5-801-002 (Memory Clear: Engine)
    Clears non-volatile memory of engine.
  • SP5-846-046 (UCS Setting: Addr Book Media)
    Displays the slot number where an address book data is in.
    • 0: Unconfirmed
    • 1: SD Slot 1
    • 2: SD Slot 2
    • 3: SD Slot 3
    • 4: USB Flash ROM
    • 10: SD Slot 10
    • 20: HDD
    • 30: Nothing
