- Remove the fusing unit. (Fusing Unit)

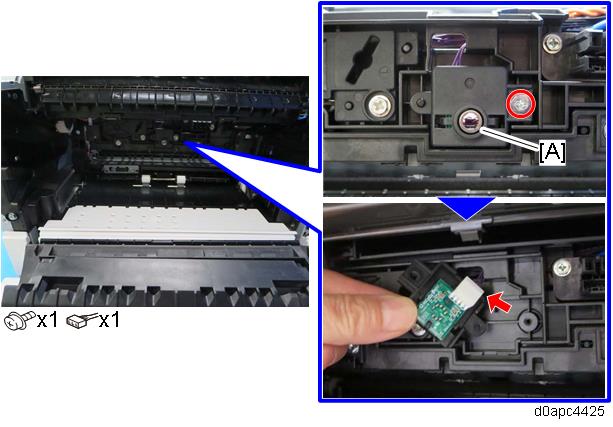

- Remove the fusing thermopile (TH2) with the cover [A], and then disconnect the connector.

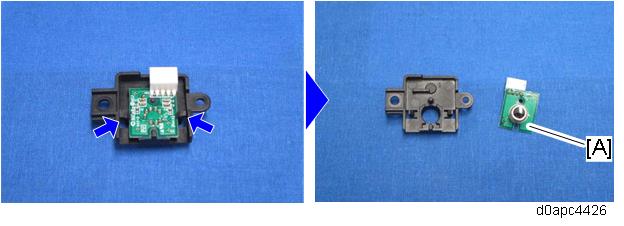

- Release the two hooks to remove the thermopile (TH2) [A] from the cover.
