- Remove the left cover. (Left Cover (Printer), Left Cover (MF))

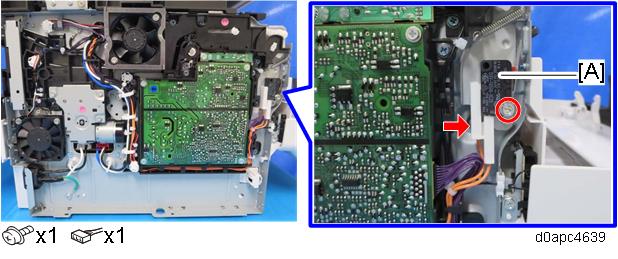

- Remove the front interlock switch (SW1) [A].
