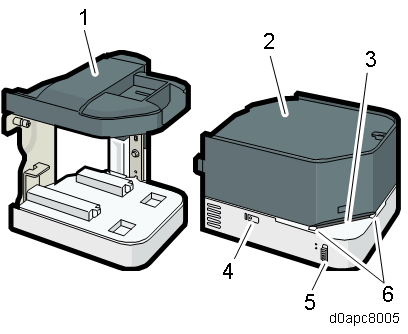

| 1 | Staple unit cradle | 4 | Lamp |
| 2 | Staple unit | 5 | Slide switch |
| 3 | Stapling slot | 6 | Stoppers |
