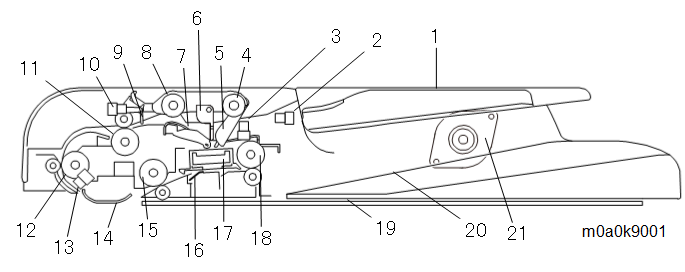

| No. | Name | No. | Name |
|---|---|---|---|
1 | Original tray | 12 | Pre-scanning roller (front side) |
2 | Feed cover sensor (S15) | 13 | SPDF registration sensor (S16) |
3 | Original set sensor (S14) | 14 | Scanning guide plate (front side) |
4 | Pick-up roller | 15 | Pre-scanning roller (rear side) |
5 | Original set sensor actuator | 16 | Scanning guide plate (rear side) |
6 | Stopper | 17 | CIS unit |
7 | Friction pad | 18 | Exit roller |
8 | Feed roller | 19 | Platen |
9 | Feed sensor actuator | 20 | Original exit tray |
| 10 | SPDF feed sensor (S17) | 21 | SPDF drive motor (M6) |
| 11 | SPDF entrance roller |

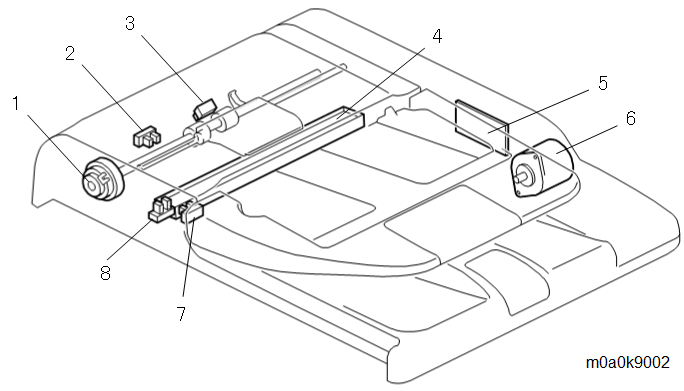

| No. | Name | No. | Name |
|---|---|---|---|
1 | SPDF feed clutch (CL8) | 5 | SPDF relay board |
2 | SPDF feed sensor (S17) | 6 | SPDF drive motor (M6) |
3 | SPDF registration sensor (S16) | 7 | Feed cover sensor (S15) |
4 | CIS unit | 8 | Original set sensor (S14) |
