1. Remove the fusing pressure/release motor (M2). (Fusing Pressure/Release Motor (M2))

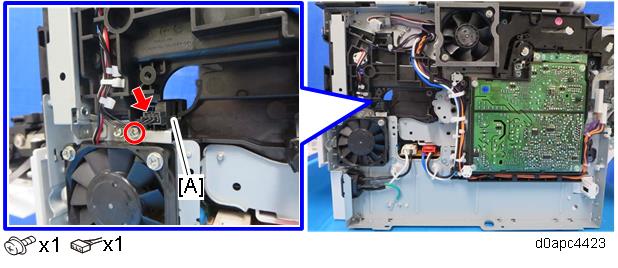

  2. Remove the Fusing nip pressure position sensor (S7) [A] with the bracket.

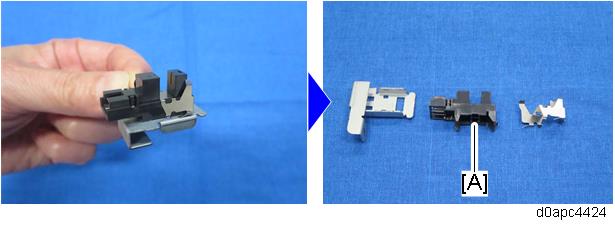

  3. Remove the Fusing nip pressure position sensor (S7) [A] from the bracket.
