P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
Electrical Components
SCB with the Controller Box (MF Model)
Remove the right cover. (
Right Cover (MF)
)

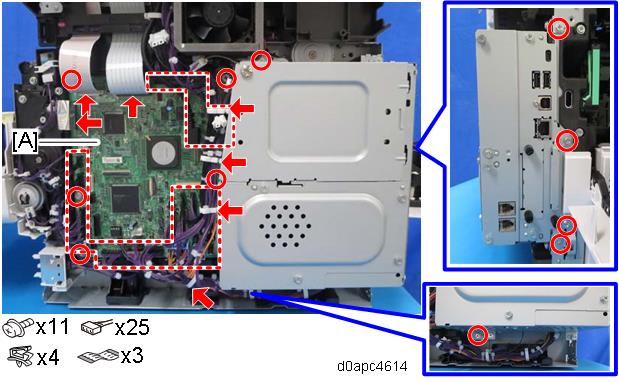

Remove the SCB [A] with the controller box.
