- Remove the left cover. (Left Cover (Printer), Left Cover (MF))
- Remove the fusing unit. (Fusing Unit)

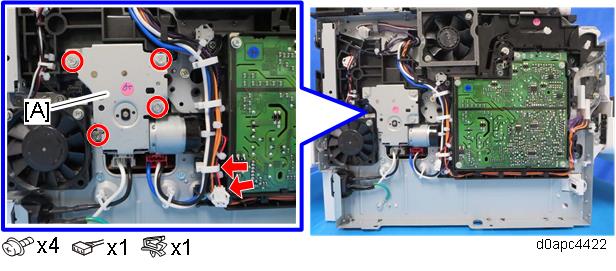

- Remove the fusing pressure/release motor (M2) [A].
