P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
Paper Feed
Bypass Tray Sensor (S3)
Remove the bypass feed unit. (
Bypass Feed Unit
)

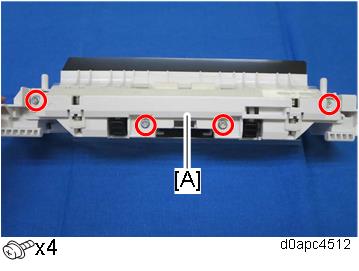

Remove the bypass feed unit lower cover [A].

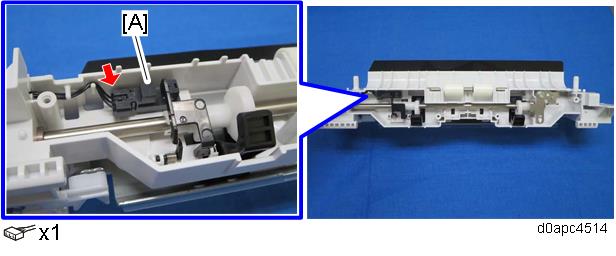

Remove the bypass tray sensor (S3) [A].
