- Remove the bypass feed unit. (Bypass Feed Unit)

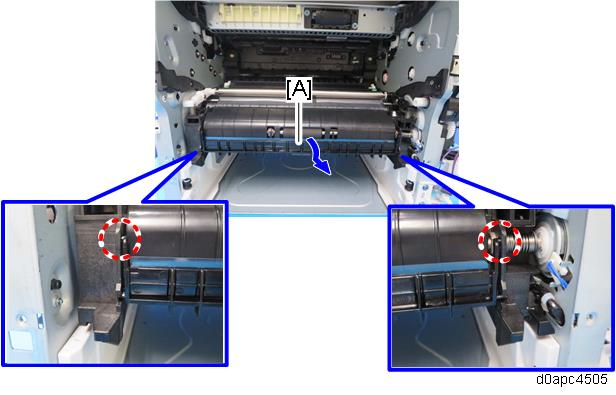

Release the two hooks on the upper side, and then turn the inner cover [A] toward you to remove it.

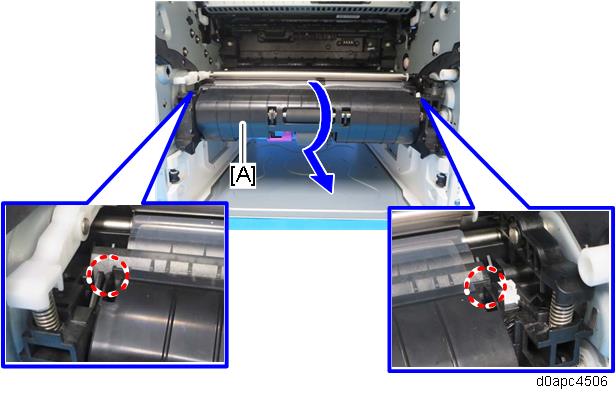

Release the two hooks on the upper side, and then turn the paper feed guide [A] toward you to remove it.

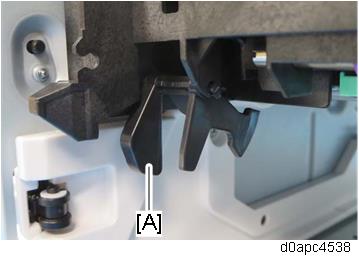

When attaching the paper feed guide, make sure that the paper near-end sensor feeler [A] is set correctly as shown below.

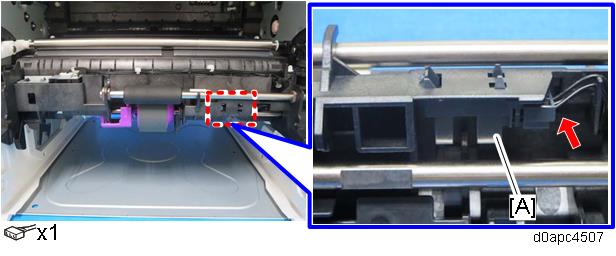

Remove the paper end sensor (S6) [A].

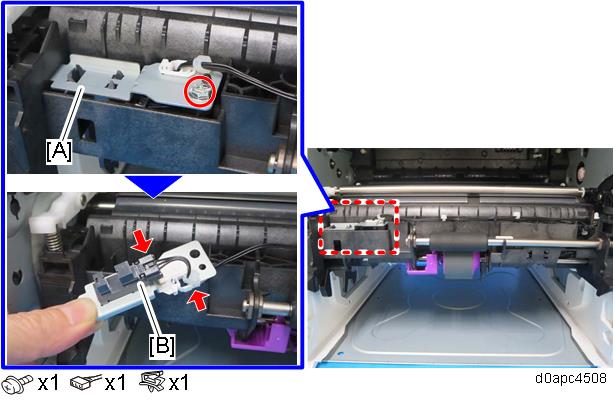

Remove the bracket [A], and then remove the paper near-end sensor (S4) [B].
