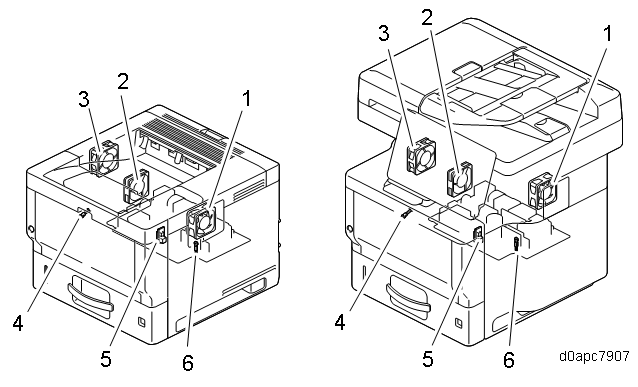

No. | Name | No. | Name |
---|---|---|---|
1 | PCDU cooling fan (right) (FAN1) | 4 | Image creation thermistor (TH5) |
2 | PSU cooling fan (FAN3) | 5 | Temperature/humidity sensor (S11) |
3 | PCDU cooling fan (left) (FAN2) | 6 | PSU thermistor (on PSU board) |
No. | Name | No. | Name |
---|---|---|---|
1 | PCDU cooling fan (right) (FAN1) | 4 | Image creation thermistor (TH5) |
2 | PSU cooling fan (FAN3) | 5 | Temperature/humidity sensor (S11) |
3 | PCDU cooling fan (left) (FAN2) | 6 | PSU thermistor (on PSU board) |
