- Remove the Fusing unit. (Fusing Unit)

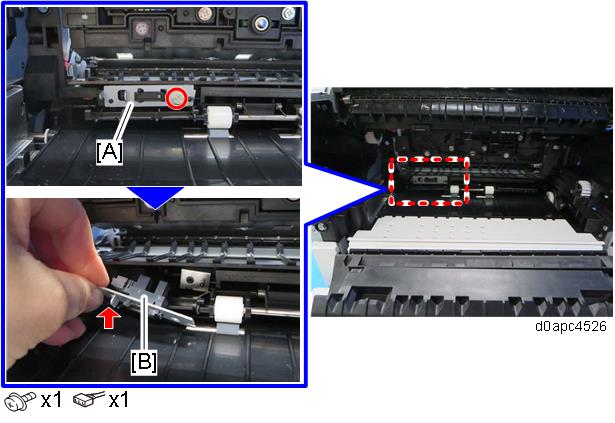

- Remove the bracket [A], and then remove the duplex entrance sensor (S8) [B].
