1. Remove the PCDU. (PCDU)

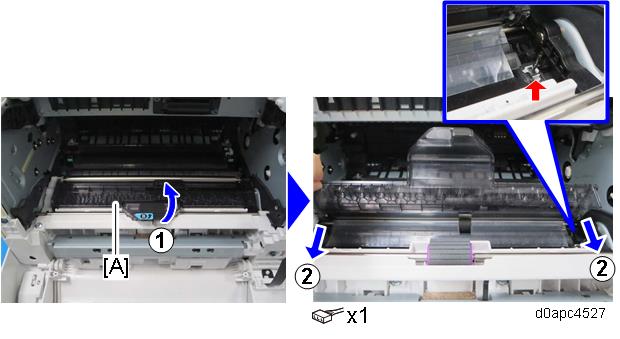

  2. Open the cover [A] of the bypass feed roller to disconnect the connector, and then pull it towards you to remove.

    The cover of the bypass feed roller is notched, so pull while raising it.

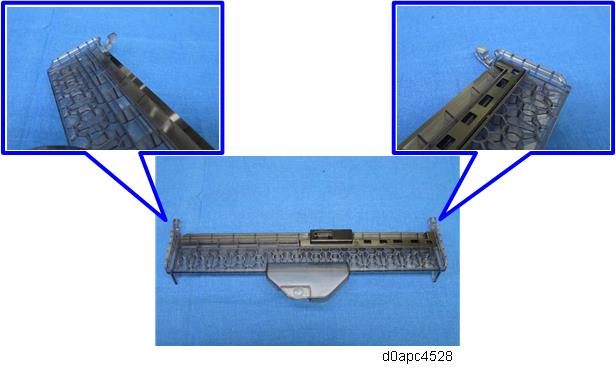

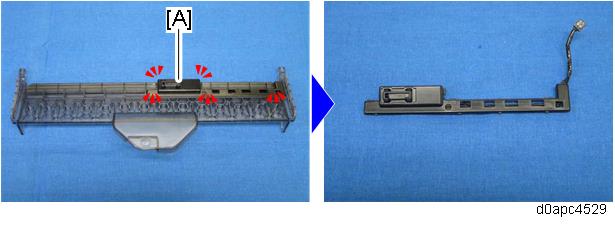

  3. Release the five hooks to remove the harness cover [A].

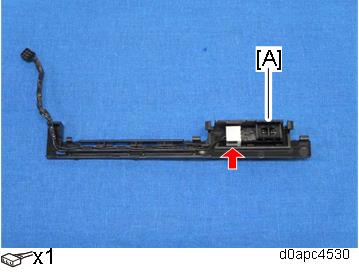

  4. Remove the registration sensor (S5) [A].
