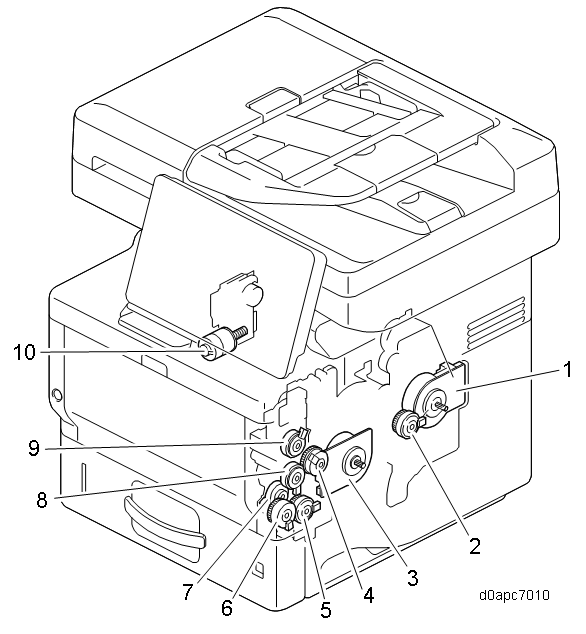

No. | Description | No. | Description |
|---|---|---|---|
1 | Feed/fusing motor (M4) | 6 | Bypass lift clutch (CL3) |
2 | Duplex clutch (CL1) | 7 | Relay clutch (CL7) |
3 | Drum motor (M3) | 8 | Bypass feed clutch (CL4) |
| 4 | Registration clutch (CL5) | 9 | Toner supply clutch (CL2) |
| 5 | Paper feed clutch (CL6) | 10 | Fusing pressure/release motor (M2) |
