Make sure that the FFC of the scanner carriage is connected and routed correctly:

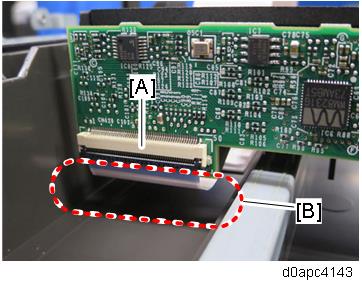

  • The FFC [A] must be connected straight, and not at an angle. Otherwise, the SCB may be damaged.

  • The FFC must not sag or drag on the bottom of the scanner unit [B].

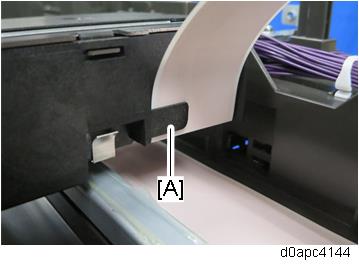

  • FFC must be hooked at [A] of the scanner carriage.
