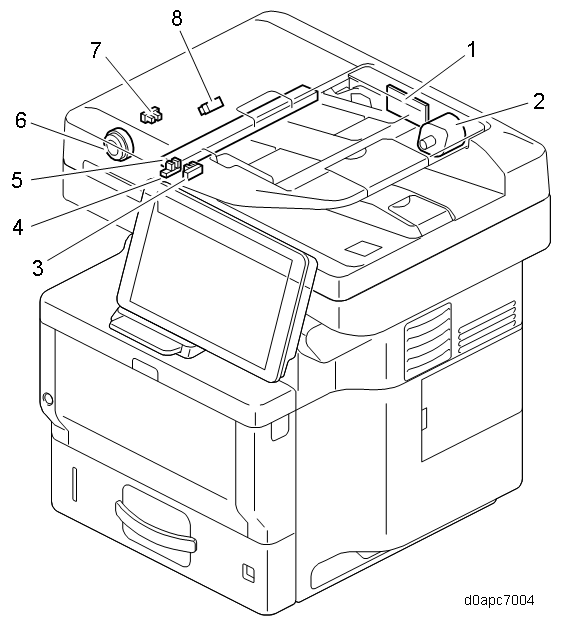

No. | Description | No. | Description |
|---|---|---|---|
1 | SPDF relay board | 5 | CIS unit |
2 | SPDF drive motor (M6) | 6 | SPDF feed clutch (CL8) |
3 | Feed cover sensor (S15) | 7 | SPDF feed sensor (S17) |
4 | Original set sensor (S14) | 8 | SPDF registration sensor (S16) |
No. | Description | No. | Description |
|---|---|---|---|
1 | SPDF relay board | 5 | CIS unit |
2 | SPDF drive motor (M6) | 6 | SPDF feed clutch (CL8) |
3 | Feed cover sensor (S15) | 7 | SPDF feed sensor (S17) |
4 | Original set sensor (S14) | 8 | SPDF registration sensor (S16) |
