1. Remove the PCDU. (PCDU)
  2. Remove the HVPS with the bracket. (HVPS with the Bracket)

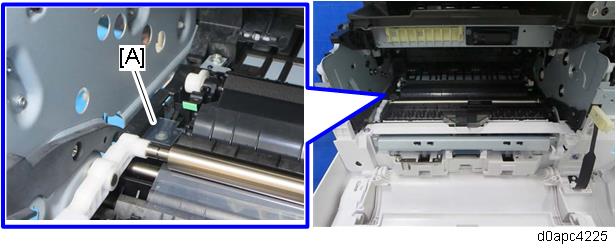

  3. Remove the cover seal [A] for the image creation thermistor (TH5).

    Do not reuse the removed cover seal. Replace it with a new seal.

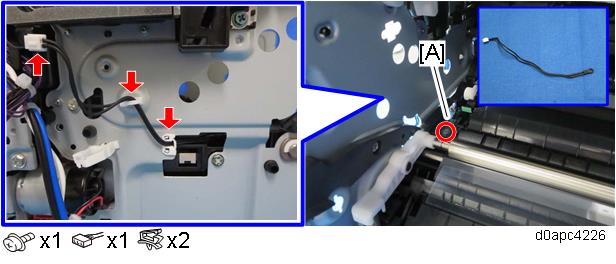

  4. Remove the image creation thermistor (TH5) [A].
