Before replacing the bypass feed roller, reset the PM counter.

  1. Turn the power ON and enter the SP mode.

  2. Execute the SP7-804-057 (Reset PM Counter: Feed Bypass) to reset the PM counter.

  3. Turn the power OFF.



  1. Remove the PCDU. (PCDU)

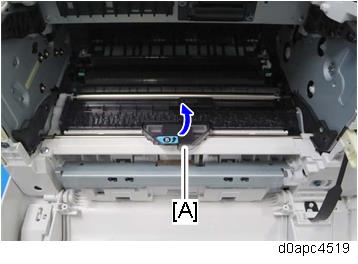

  2. Open the cover [A] of the bypass feed roller.

  3. Remove the bypass feed roller [A] with the shaft.
    Slide the shaft to the left, and then detach the right end of the roller first.

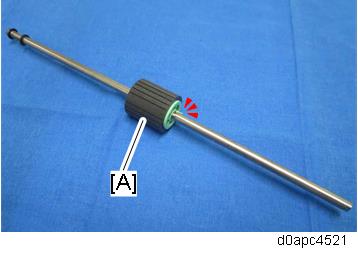

  4. Release the hook to remove the bypass feed roller [A].

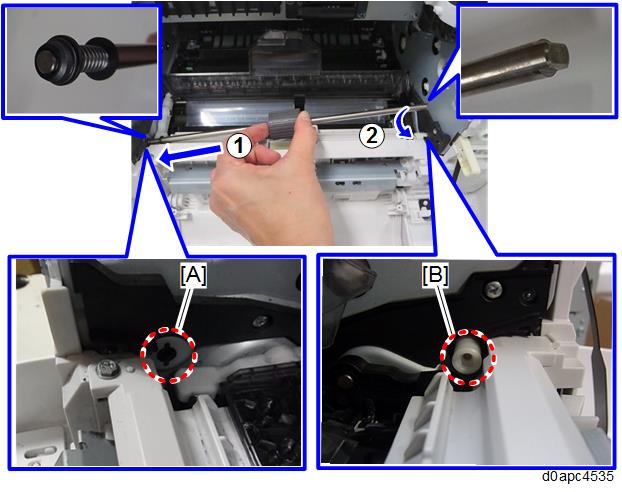

    When attaching the bypass feed roller, insert the left end of the roller with the spring into the hole [A] of side plate first. Then slide the roller to the left, and then insert the right end of the roller into bearing [B].

    If the shaft is not attached correctly, a paper jam will occur.

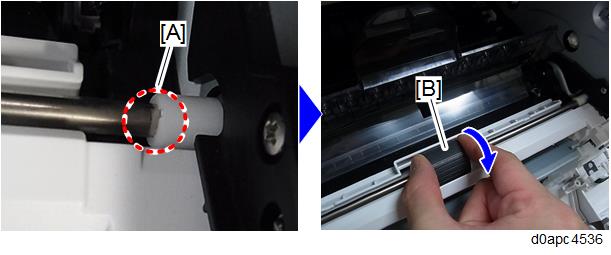

    If the roller surface [A] is not set correctly as shown below, hold the end of the bypass feed roller [B] and turn it manually several times in the feed direction to seat the roller automatically. Avoid touching the surface of the roller while doing this.
