1. Remove the fusing upper cover. (Fusing Upper Cover)

  2. Remove the fusing thermistor (TH1). (Fusing Thermistor (TH1))

  3. Remove the fusing lamp. (Fusing Lamp)

  4. Remove the hot roller strippers with the bracket. (Hot Roller Stripper)

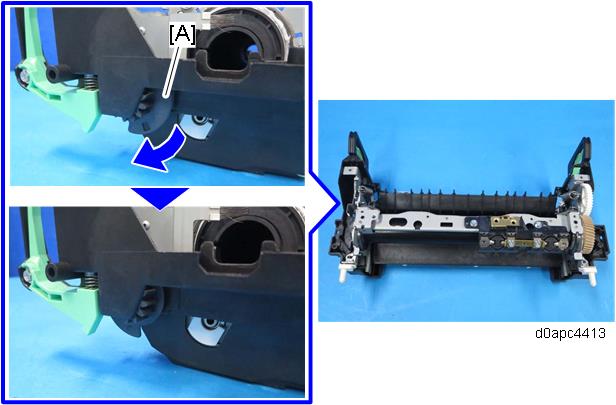

  5. Turn the position detection feeler [A] lightly clockwise to release the spring tension.

    When the machine power supply is off, the hot roller and pressure roller are pulled apart, so the pressure spring is extended (under high tension).

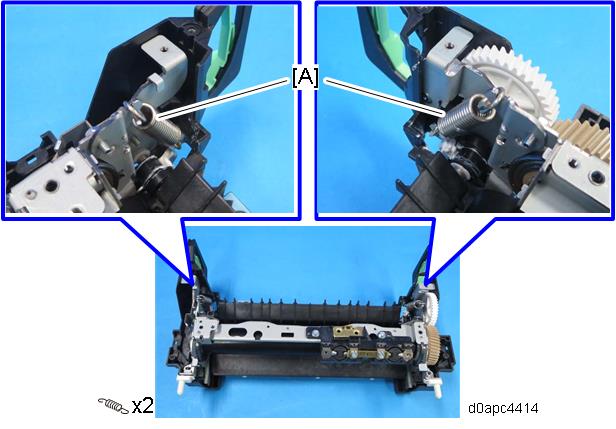

  6. Remove the springs [A] on both sides.

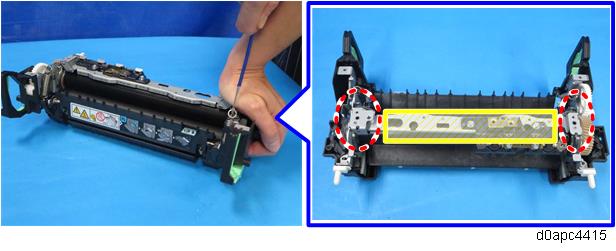

    When removing the springs, press the side plates (circled in red). Do not apply force the top plate (marked yellow).

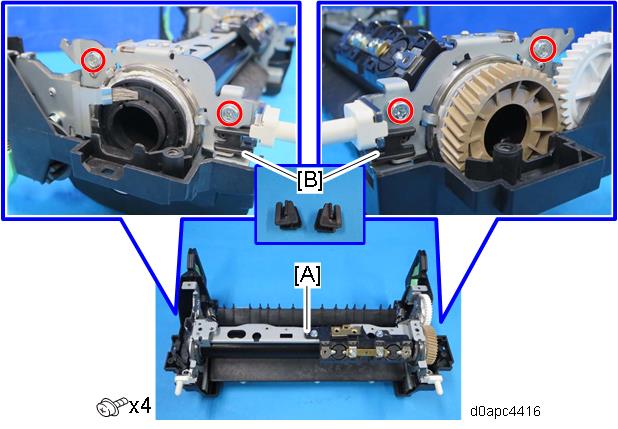

  7. Remove the screws of the bracket [A] on both sides, and then remove the harness guide [B].

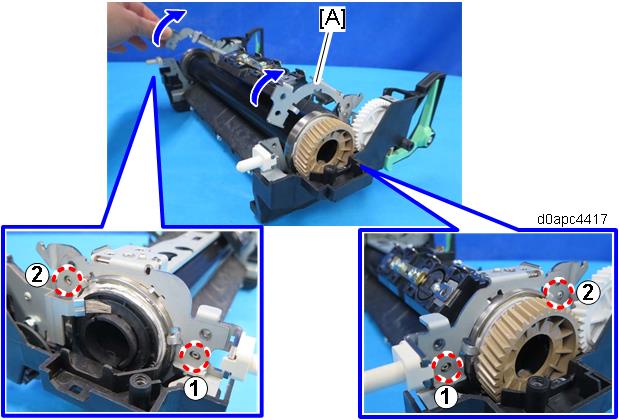

  8. Remove the bracket [A].
    Release the boss cap (1), raise bracket [A], and then release the boss cap (2).

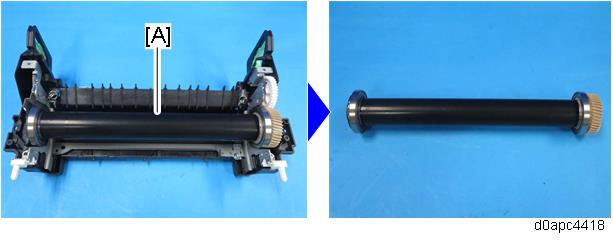

  9. Remove the hot roller [A].
