P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
Fusing
Fusing Lamp
Remove the fusing upper cover. (
Fusing Upper Cover
)

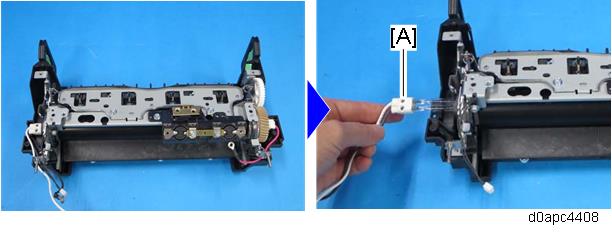

Pull out the fusing lamp [A] from the left side.
Expand All
