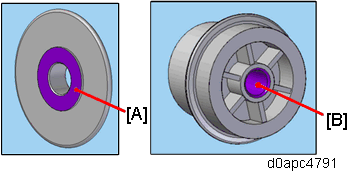

Apply quick-drying grease to the locations shown below.
| Location | Parts name | Note | |
|---|---|---|---|
| [A] | Flange | FLANGE:SYNCHRONOUS BELT | Apply to flange and sliding surface. |
| [B] | Timing pulley shaft | GEAR:TIMING PULLEY:TRANSPORT:Z29/T36 | Apply to the recessed surface. |
Apply quick-drying grease to the locations shown below.
| Location | Parts name | Note | |
|---|---|---|---|
| [A] | Flange | FLANGE:SYNCHRONOUS BELT | Apply to flange and sliding surface. |
| [B] | Timing pulley shaft | GEAR:TIMING PULLEY:TRANSPORT:Z29/T36 | Apply to the recessed surface. |
