P 501/502, IM 350F/350/430Fb/430F
Installation

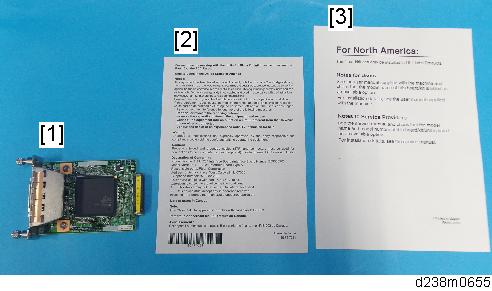

IEEE 1284 Interface Board Type M19 (D3C0-17)
Accessories
No.
Description
Q'ty
1
IEEE 1284 Interface board
1
2
FCC document
1
3
Notes for Users
1
