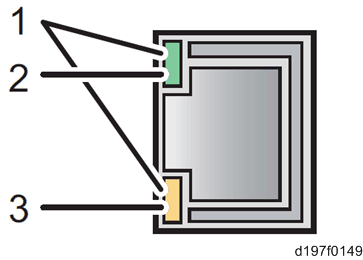

When the USB device server option is correctly installed and recognized by the main machine, the LED indicators light up under the following conditions.
No. | Color | Lights Up When: |
|---|---|---|
1 | Green and Yellow | 1000BASE-T operates |
2 | Green | 10BASE-T operates |
3 | Yellow | 100BASE-TX operates |
