To prevent injury from electrical shock or damage to the machine, before installation always, turn the main machine power off, and then unplug the machine power supply cord from the power source.

When installing more than one SD card, perform the merge operation. (SD Card Appli Move)

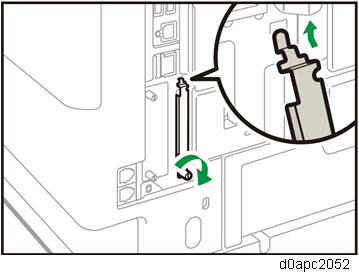

    1. Loosen the screw and remove the SD card slot cover.
      Printer model:

      MF model:

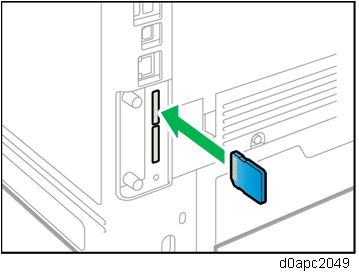

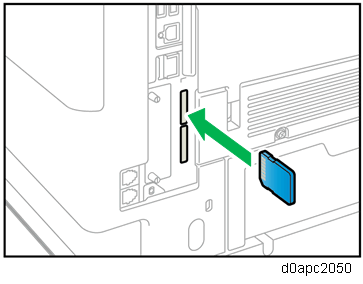

    2. Insert the SD card into the upper slot.
      Printer model:

      MF model:

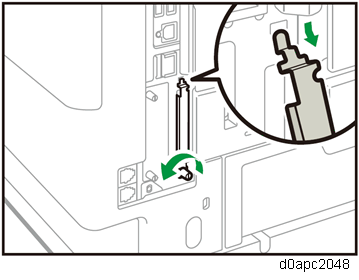

    3. Attach the SD card slot cover and fasten it.

      Printer model:

      MF model:
    4. Plug in the power cord, and then turn on the machine

    5. Confirm that the SD card was installed correctly.

      Printer model: The name of the installed emulation card appears in the [Prioritize Emulation/Program] of [System Settings].

      MF model: The name of the installed emulation card appears in the [Prioritize Emulation/Program] of [System Settings] under [Initial Settings of the Printer]
