Apply grease (FLOIL G-348) at the locations shown below.
| Location | Part name | Note | |
|---|---|---|---|

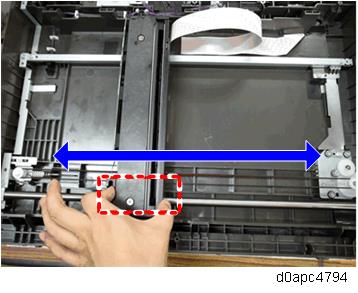

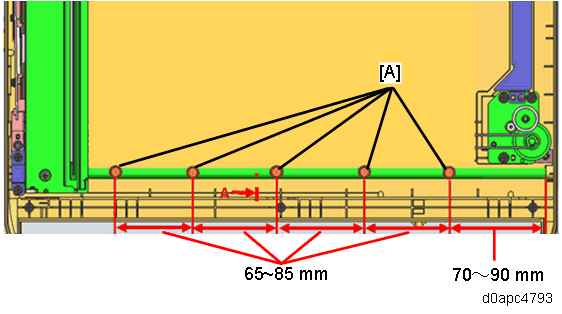

| [A] | Scanner guide rod | GUIDE ROD: SCANNER | 5 places. Hold the scanner carriage with the hand, and then move it right and left three times from the end to the end of the guide rod to spread the grease to the whole.  |

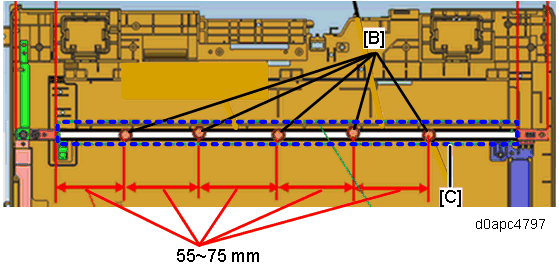

| [B] | Scanner rail | RAIL: SCANNER | 5 places. Spread the grease on the entire rail (range of [C]) with a brush. |
| Coating Amt. | Maximum | Minimum |
|---|---|---|
| [A] |  |  |
| [B] |  |  |
