- Remove the bypass feed unit. (Bypass Feed Unit)

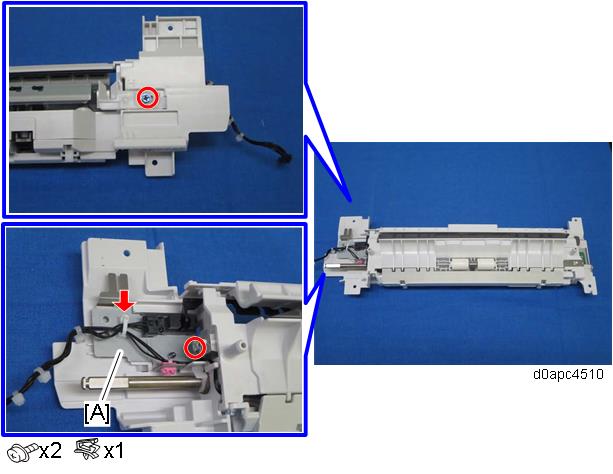

Remove the bracket [A] with the bypass paper end sensor (S2).

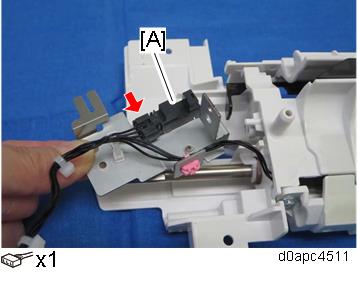

Remove the bypass paper end sensor (S2) [A] from the bracket.
Remove the bracket [A] with the bypass paper end sensor (S2).
Remove the bypass paper end sensor (S2) [A] from the bracket.
