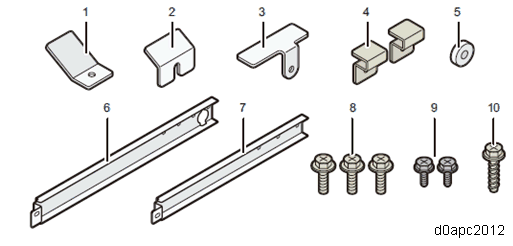

No. | Description | Q'ty | Installation location |
|---|---|---|---|
1 | Plate A-1 | 1 | Caster table - Paper feed unit (Front right) |
2 | Plate A-2 | 1 | Caster table - Paper feed unit (Front left) |
3 | Plate B-1 | 1 | Main machine - Paper feed unit (Rear left) |
| 4 | Plate B-2 | 2 | Paper feed unit - Paper feed unit (Rear) |
| 5 | Spacer | 1 | Caster table - Paper feed unit (Rear right) |
| 6 | Plate C-1 | 1 | Caster table - Paper feed unit (Rear right) |
| 7 | Plate C-2 | 1 | Only used when installing three paper feed units. |
| 8 | Screw A (Ｍ4×8) | 3 | Caster table - Paper feed unit |
| 9 | Screw B (M3×6) | 2 | Paper feed unit, Main machine (Left side) |
| 10 | Screw C (M3x12) | 1 | Paper feed unit, Main machine (Right side) |
| - | Installation Guide | 1 | - |
