- Remove the upper cover. (Upper Cover (Printer), Upper Cover (MF))

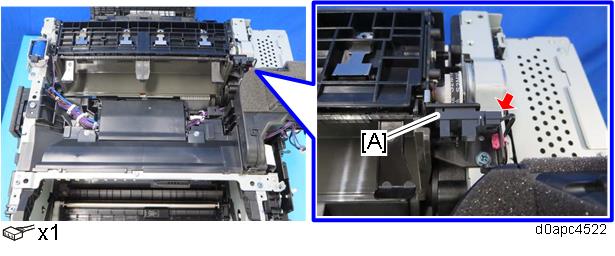

- Remove the Paper exit full sensor (S10) [A].
