P 501/502, IM 350F/350/430Fb/430F
Installation
IEEE 802.11 Interface Unit Type M24 (M500-08)
Accessories
No.
Description
Q’ty
1

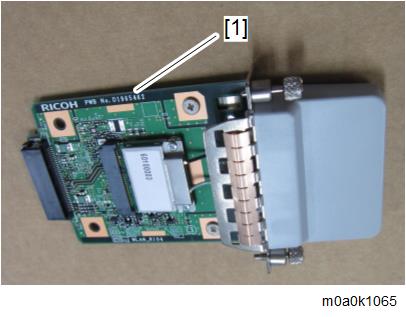

IEEE 802.11 Interface board
1
-
Notes for Users
1
-
EMC address
1
-
Caution chart
1
