- Remove the front cover. (SPDF Front Cover)

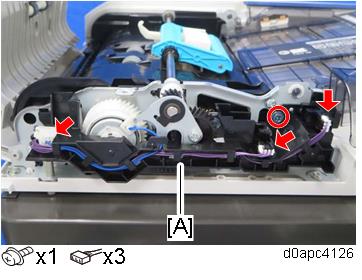

- Release the harnesses on the harness guide [A] then remove it.

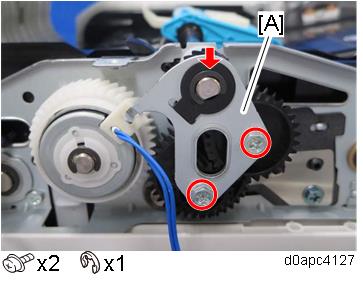

- Remove the gear bracket [A].

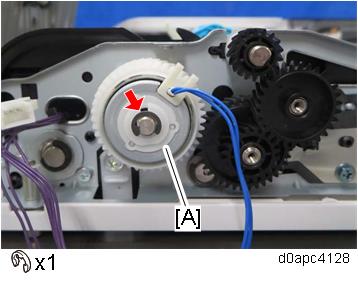

- Remove the SPDF feed clutch (CL8) [A].
